Ultra-Flange Panels

Ultra-Flange Panels

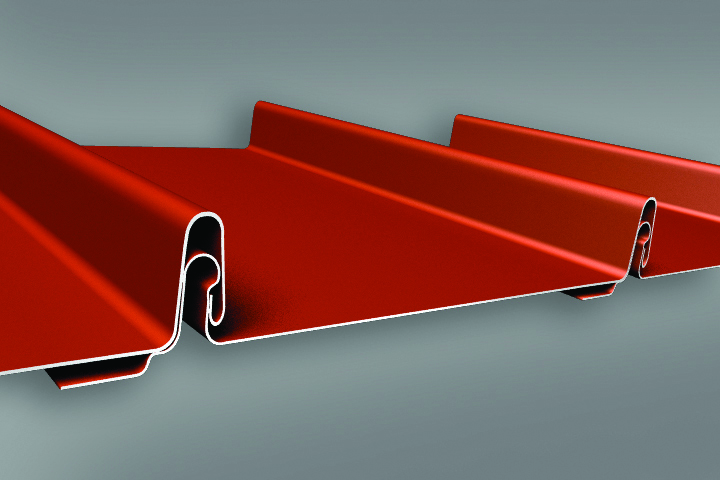

Perfect for residential or light duty commercial applications, Ultra-Flange standing seam panel is unsurpassed in ease of installation and simplicity. The unique one piece, clip-less, concealed fastener design requires no special tools or equipment for installation.

Available in both a 1″ high seam profile (1.0) and 1 1/2″ high variety (1.5), Ultra-Flange’s simple one-piece, clip-less, snap on design provides installation simplicity resulting in measurable labor savings and an economic solution.

Typically recommended for applications having a 3:12 pitch or greater, Ultra-Flange must be installed over solid substrate and is a very good choice for mansard or canopy applications.

For snow retention installation, use S5N™ clamp for the Ultra-Flange 1.0 panel and use S5N1.5™ or S5Z™ clamp for Ultra-Flange 1.5 panel.

Technical Details

  • Attractive architectural profile
  • Perfect for residential or light commercial applications
  • No separate clip required
  • Economical one-piece design
  • Fast, easy installation, no mechanical seaming required

ASTM Tests

  • ASTM E1529 Uniform Static Air Pressure tested
  • ASTM E283/1680 Air Infiltration tested
  • ASTM E331/1646 Water Infiltration tested
