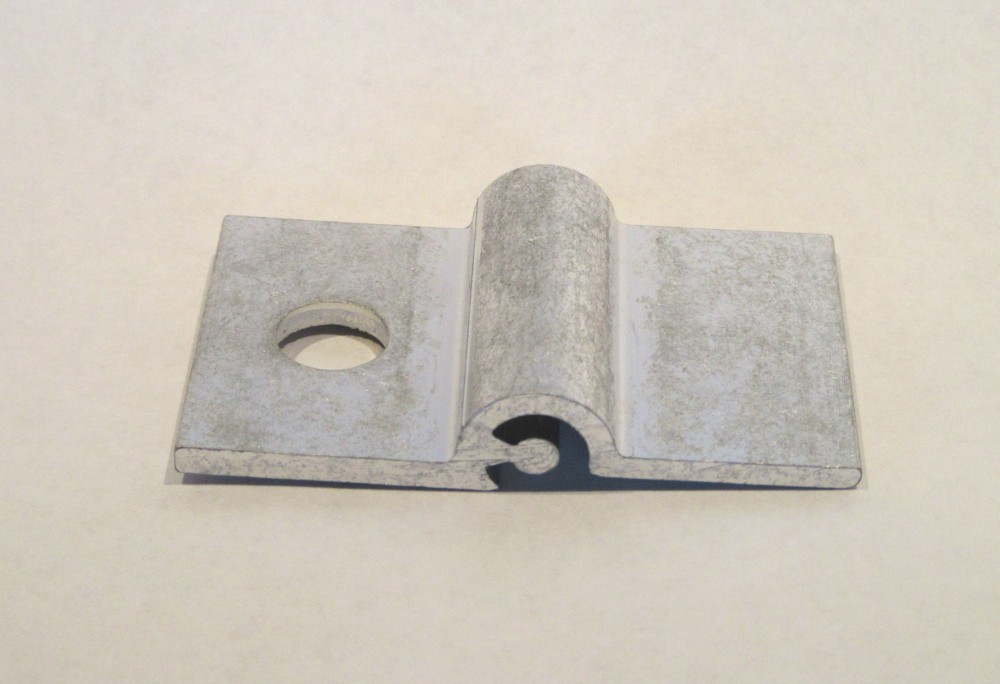

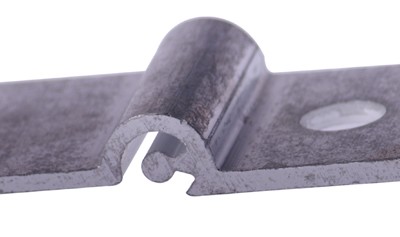

Purchased separately. VersaClip makes installation easy as it simply slides on the ColorGard crossmember. It can be used with all S-5! clamps (one per clamp), and is optional with CorruBracket. VersaClip is not needed with VersaBracket. VersaClip is also handy when installing ColorGard askew, such as is required in the valleys between intersecting rooflines.

Technical Details

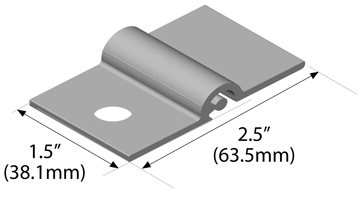

Use VersaClip when seam spacing is not divisible by 4″ (e.g. 12″, 16″, 24″) or when panels are not laid up true-to-dimension, or when ColorGard® is installed askew to the panel seams (e.g. parallel with the line of a valley) the VersaClips™ facilitates installation. The VersaClips™ are inserted into the ColorGard® prior to placement of the ColorGard® on the clamps. Align clips with S-5!® clamp, VersaClip™ can be used with punched or unpunched ColorGard®.

Click here for the S-5! Calculator
