Ultra-Snap Panels

Ultra-Snap Panels

Combining the aesthetic appeal of an architectural panel and the ease of installation found only in a snap-on configuration, the Ultra-Snap standing seam roof panel system has become the first choice of architects, contractors and building owners alike.

Ultra-Snap’s rigid male/female joint profile provides installation simplicity while offering both structural performance as well as a UL90 wind uplift rating in a variety of assemblies. The one piece, snap-on design eliminates the need for mechanical seaming, resulting in measurable labor savings. The 1 3/4″ high profile incorporates the use of concealed expansion clips allowing for thermal expansion and contraction while providing exceptional uplift resistance.

Typically recommended for applications having 3:12 pitch or greater, Ultra-Snap may be installed either over solid substrate or open framing members.

For snow retention installation, use S5S™ clamp for the Ultra-Snap panel.

Technical Details

  • Attractive architectural profile
  • Economical one-piece design
  • Load bearing, structural performance capability
  • Fast, easy installation, no mechanical seaming required
  • Optional Shadow Rib or Pencil Beads available

ASTM Tests

  • ASTM E1592 Uniform Static Air Pressure tested
  • ASTM E283/1680 Air Infiltration tested
  • ASTM E331/1646 Water Infiltration tested

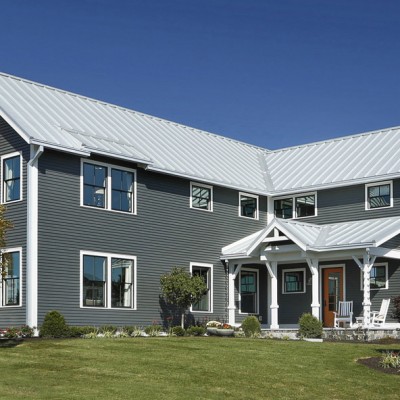

Project Photos
