Ultra-Seam Panels

Ultra-Seam Panels

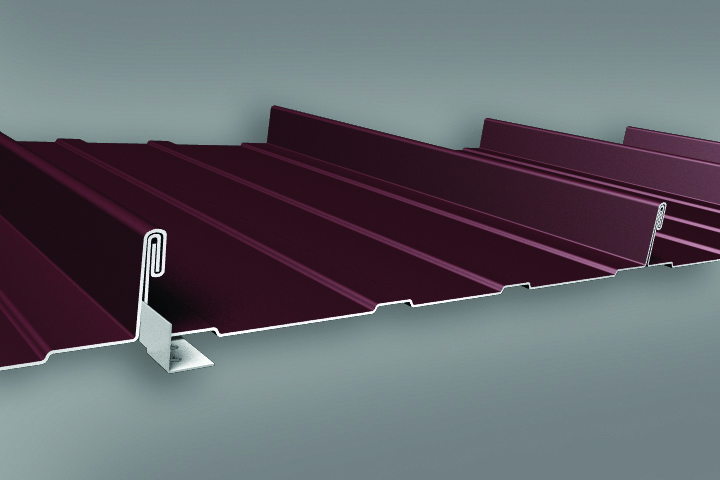

The Ultra-Seam standing seam panel profile is the industry standard in traditional standing seam roofing. The mechanically-seamed, double locked profile provides the highest air & water infiltration rating available. The traditional look provides design flexibility while mechanical seaming results in an extremely water tight system. It is recommended that Ultra-Seam be installed over a solid substrate and a minimum underlayment of 30 lb. felt. Ultra-Seam carries a UL90 wind uplift rating in a variety of configurations.

For snow retention installation, use S5E™ clamp for the Ultra-Seam panel.


Technical Details

  • Traditional profile & detailing
  • Maximum watertight double locked seam
  • Mechanically-seamed Suitable for very low slop application
  • Optional Shadow Rib or Stiffening Ribbons Available

ASTM Tests

  • ASTM E1592 Uniform Static Air Pressure tested
  • ASTM E283/1680 Air Infiltration tested
  • ASTM E331/1646 Water Infiltration tested
