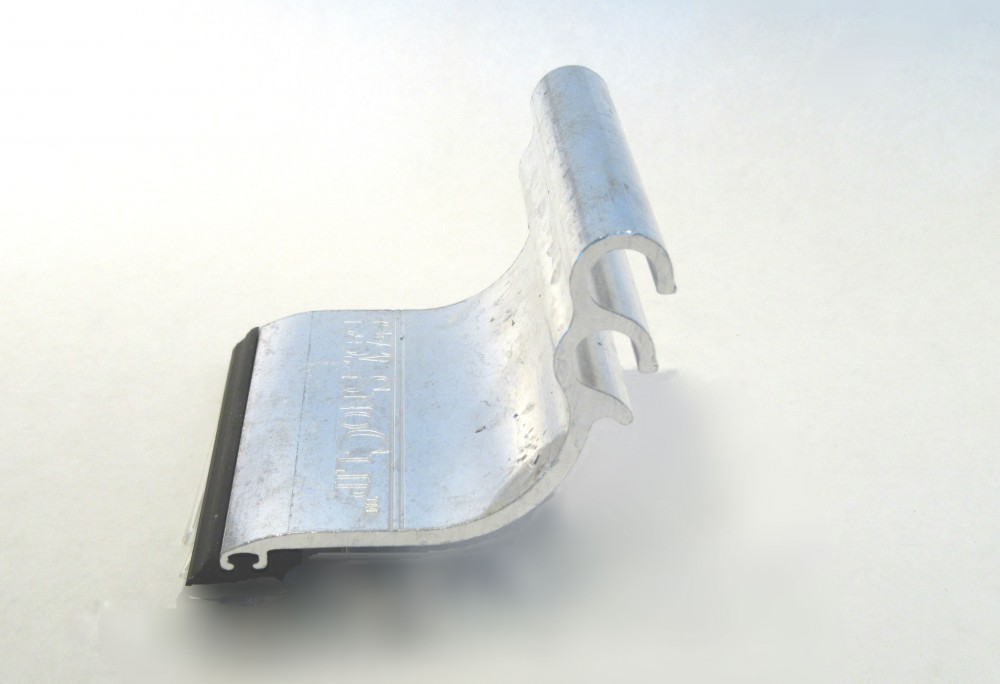

This aluminum component retards the migration of snow and ice beneath the ColorGard® crossmember or SnoFence™ and SnoRail™ systems. It has a special integrated rubber “foot” to prevent abrasion of the panel’s finish. SnoClip™ slides onto the back of the crossmember or rod and extend down to the flat of the roofing panel.

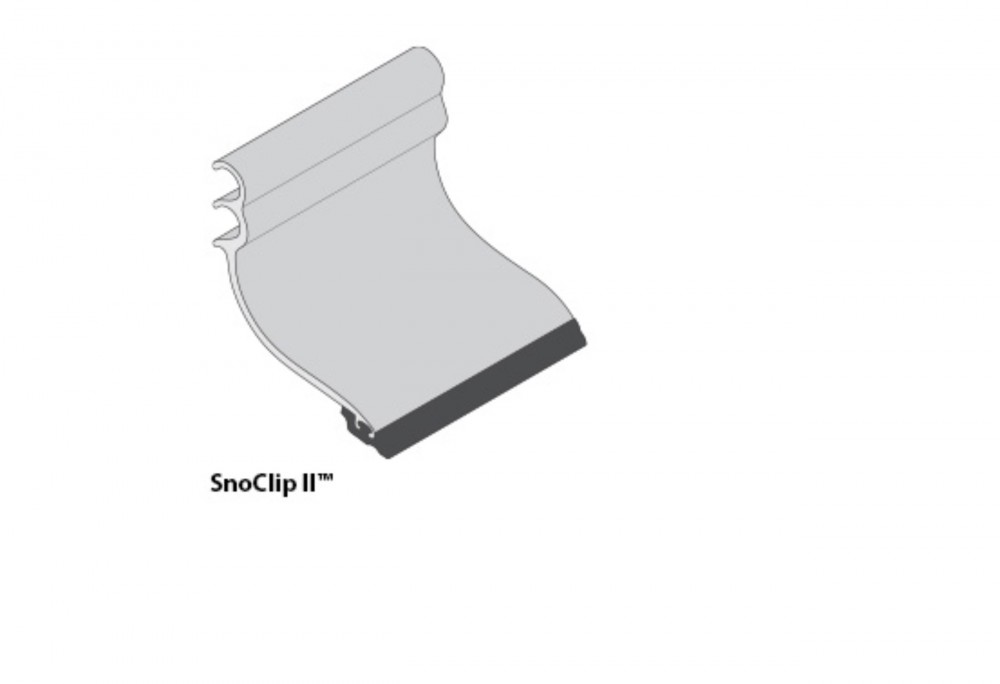

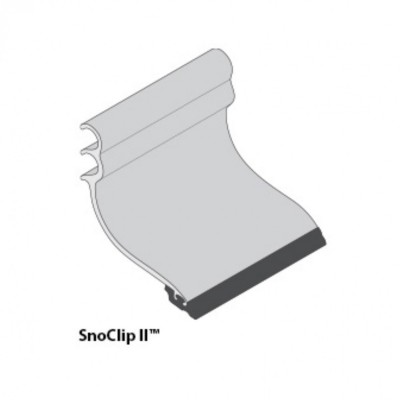

SnoClip II™ has two locks and is designed for seam heights of 1″ (25 mm) and 1 3/4″ (44.5 mm) snap. It will also fit 2″ (51 mm) vertical seams, but not 2″ (51 mm) horizontal.
Important Notice!–SnoClip™ designed has changed. SnoClip must now slide on from the end of the ColorGard crossmember. Be sure to slide SnoClip onto assembly before attaching crossmember to clamps.

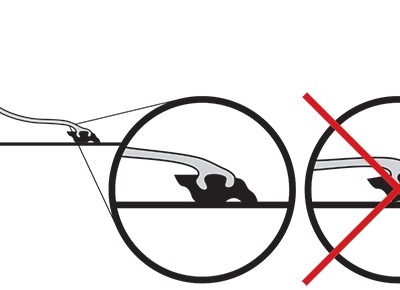

Slide SnoClip™ onto ColorGard® during installation. One or two clips are used between seams (please visit www.S-5.com for details). Slide the SnoClip onto the back of the crossmember or rod (on SnoFence™, use only on lower rod, never use on top rod) using the lock that results with the rubber “foot” resting properly on the panel surface. When applying downward pressure on the part, the “toe” should engage the surface of the panel just before the “heel.”
Important: to ensure proper lock positioning, visit www.S-5.com/ChooseYourLock. Periodic maintenance over time may be necessary to ensure that the clips maintain the appropriate positioning, as snow weight may sometimes flip the clip up slightly.
