Ultra-Span Panels

Ultra-Span Panels

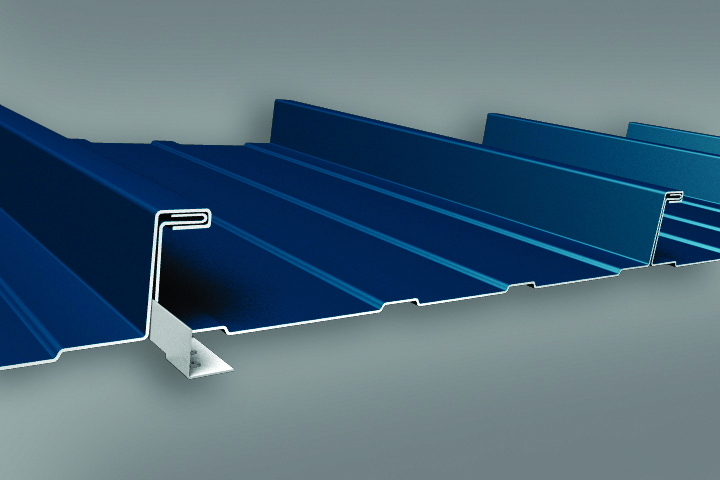

Utilizing a traditional mechanically-seamed male/female interlock seam profile and deep, 2″ seam height, Ultra-Span standing seam panel system provides a versatile combination of water tightness and structural performance. Ultra-Span allows for thermal and structural expansion and contraction through the use of a concealed, two-piece clip assembly while maintaining a UL90 wind uplift rating. This system is exceptionally well suited for applications where roof spans are long and/or low or in open-span configurations. Available in a variety of widths and produced from a number of different substrates, Ultra-Span is a uniquely versatile panel system.

For snow retention installation, use S5U™ or S5H™clamp for the Ultra-Span panel.


Technical Details

  • Load-bearing, structural capability
  • Mechanically-seamed profile
  • Suitable for low slope application
  • Optional Shadow Rib or Stiffening Ribbons Available

ASTM Tests

  • ASTM E1592 Uniform Static Air Pressure tested
  • ASTM E283/1680 Air Infiltration tested
  • ASTM E331/1646 Water Infiltration tested
